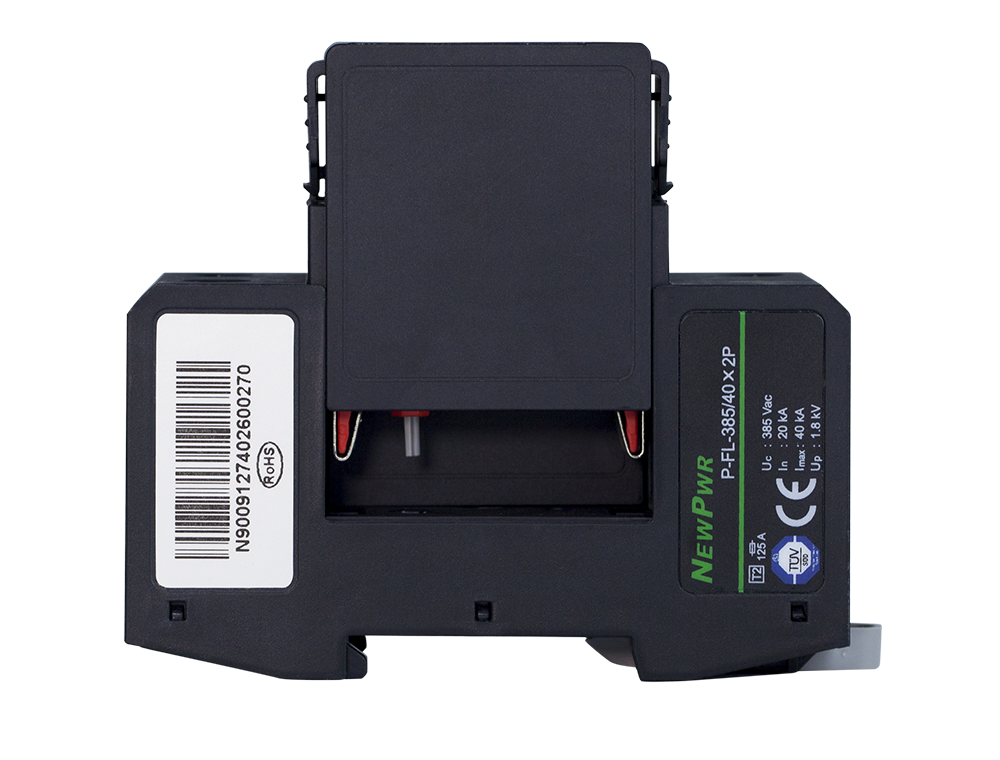

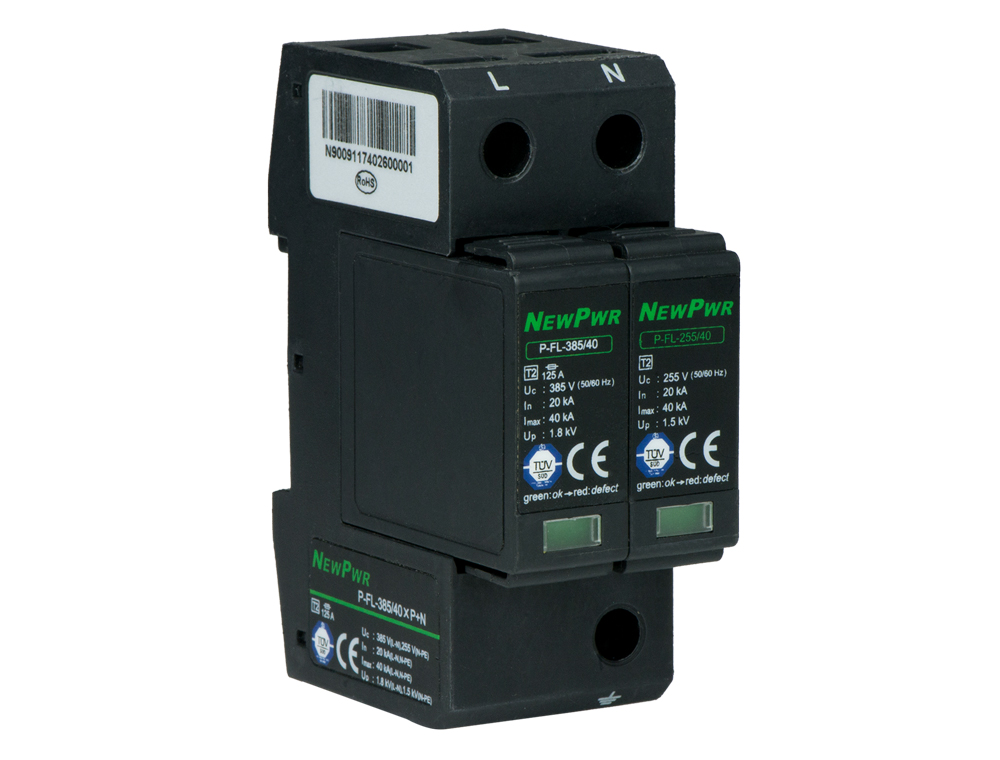

Product SPD P-FL-385/40×P+N

P-FL-385/40×P+N

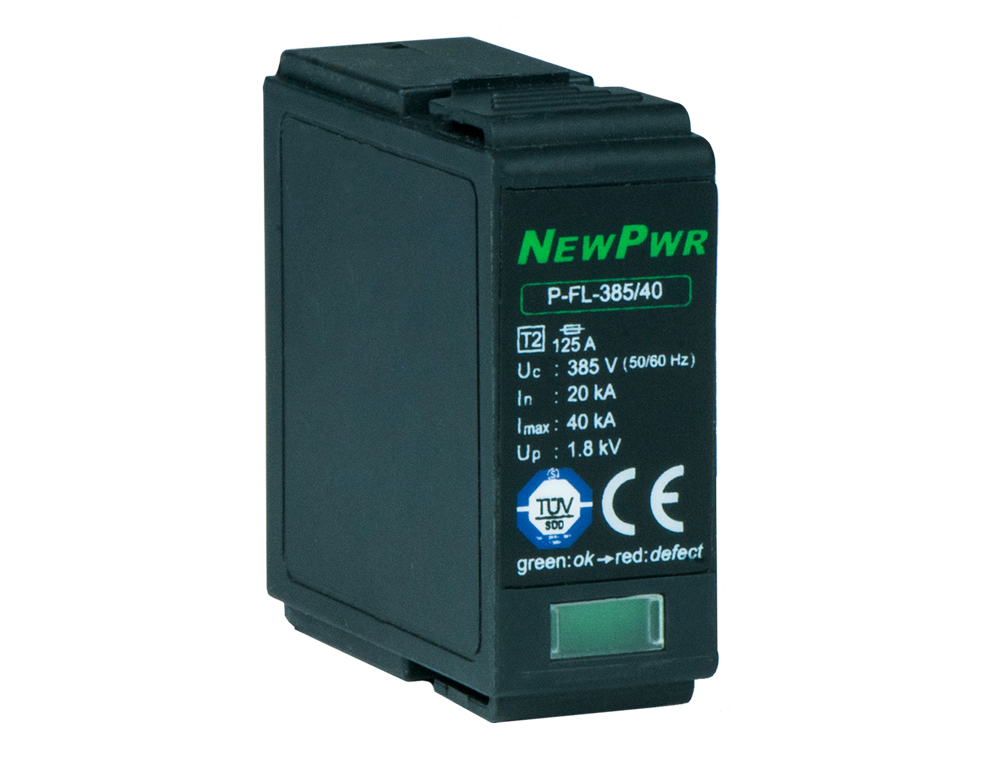

According to IEC and GB standard，SPD can release high voltage pulse energy,and limit surge in a safety voltage level. The complete device consists of a base module and plug-in protection modules and is ready for installation. I t i s su i table for LPZ0B ~ LPZ1 area and higher.

Type

Nomimal voltage

Protect level

Discharge current Imax

Power system

Share
P-FL-385/40×P+N
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal


【Technical data】 General parameters Lightning parameters Operating conditions Shell material Fault output 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 230/400 Vac
Max. continuous operating voltage Uc 385 Vac(L-N), 255 Vac(N-PE)
Response time Ta ≤ 25 ns
Lightning parameters
Nominal discharge current In (8/20 μs) 20 kA
Max. discharge current Imax (8/20 μs) 40 kA
Voltage protection level Up 1.8 kV(L-N), 1.5 kV(N-PE)
Voltage protection level (5kA) Up 1.3 kV
Max. overcurrent protection ≤ 125 A gL/gG or SCB(P-SC-385/40×1P)
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Enclosure material Thermoplastic
Flame retardant grade (UL94) V0
Protection degree IP20
Fault output
Remote communication function Selection, Product model with remote terminals: P-FL-385/40×P+NR
Switching capacity 125 VAC/1 A, 125 VDC/0.2 A
Operating state/fault indication Green / red
Mechanical specifications
Enclosure dimensions (H×W×D) 90 mm × 36 mm × 66 mm
Cross-sectional area (Min.) 1.5 mm² stranded / flexible
Cross-sectional area (Max.) 25 mm² stranded / flexible
Installtion 35 mm DIN rail
Certified data
Standards IEC 61643-11/ EN 61643-11
Product approvals TUV, UL, CE, FCC
