Product SPD P-FL-24/20.D

P-FL-24/20.D

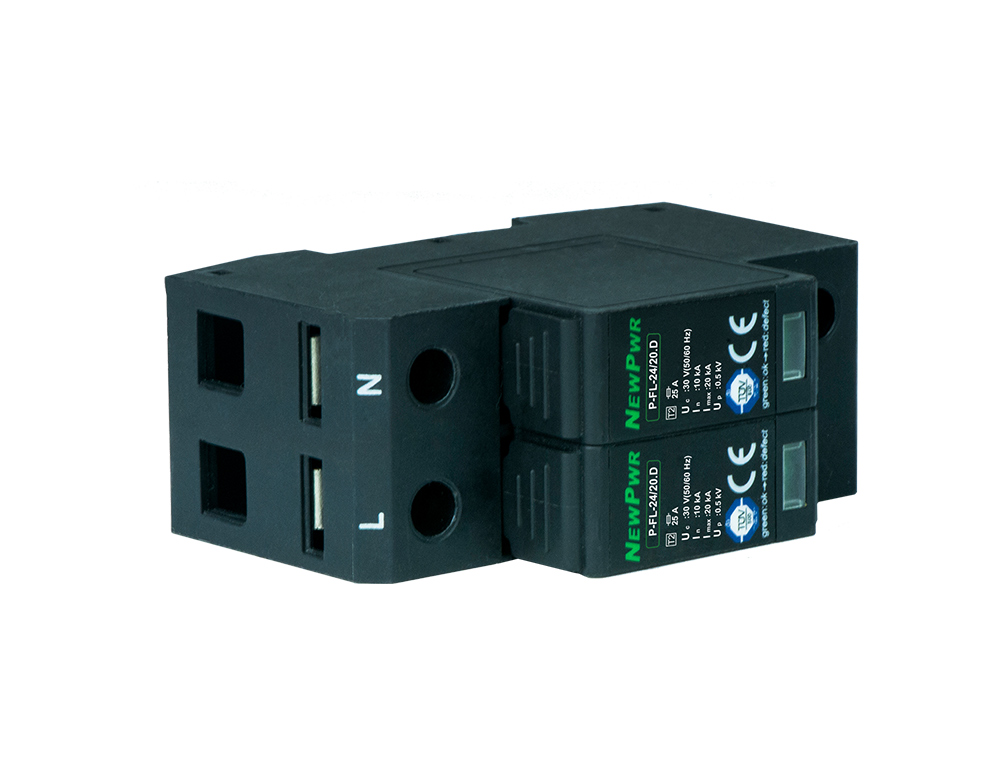

It can use for 24VDC power system, protected terminal equipment, limit surge and meet to a safety voltage. comprising a base part and a plug-in protection modulel. It is suitable for LPZ1 ~ LPZ2 area and higher.

Type

Nomimal voltage

Protect level

Discharge current Imax

Power system

Share
P-FL-24/20.D
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal


【Technical data】 General parameters Lightning parameters Operating conditions Shell material Fault output 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Technical data
Response time Ta ≤ 25 ns
General parameters
Nominal voltage Un 24 Vdc
Max. continuous operating voltage Uc 48 Vdc
Lightning parameters
Nominal discharge current In (8/20 μs) 10 kA
Max. discharge current Imax (8/20 μs) 20 kA
Voltage protection level Up 0.5 kV
Voltage protection level (5kA) Up 0.3 kV
Max. overcurrent protection ≤ 25 A gL/gG or SCB (P-SC-385/40×2P)
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Enclosure material Thermoplastic
Flame retardant grade (UL94) V0
Protection degree IP20
Fault output
Remote communication function Selection, Product model with remote terminals : P-FL-24/20.DR
Switching capacity 125 VAC/1 A, 125 VDC/0.2 A
Mechanical specifications
Operating state/fault indication Green / red
Enclosure dimensions (H×W×D) 90 mm × 36 mm × 66 mm
Cross-sectional area (Min.) 1.5 mm² stranded / flexible
Cross-sectional area (Max.) 25 mm² stranded / flexible
Installtion 35 mm DIN rail
Certified data
Standards IEC 61643-11/EN61643-11
Product approvals TUV, UL, CE, FCC
