Product SPD S-FLT-2D-5.Ex

S-FLT-2D-5.Ex

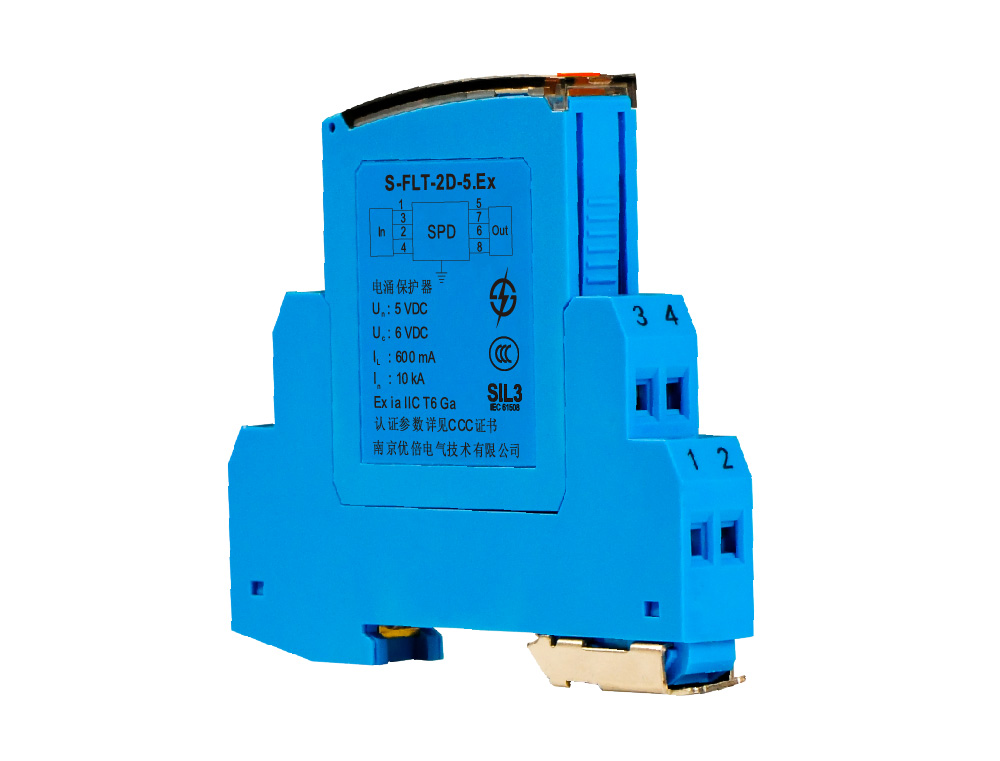

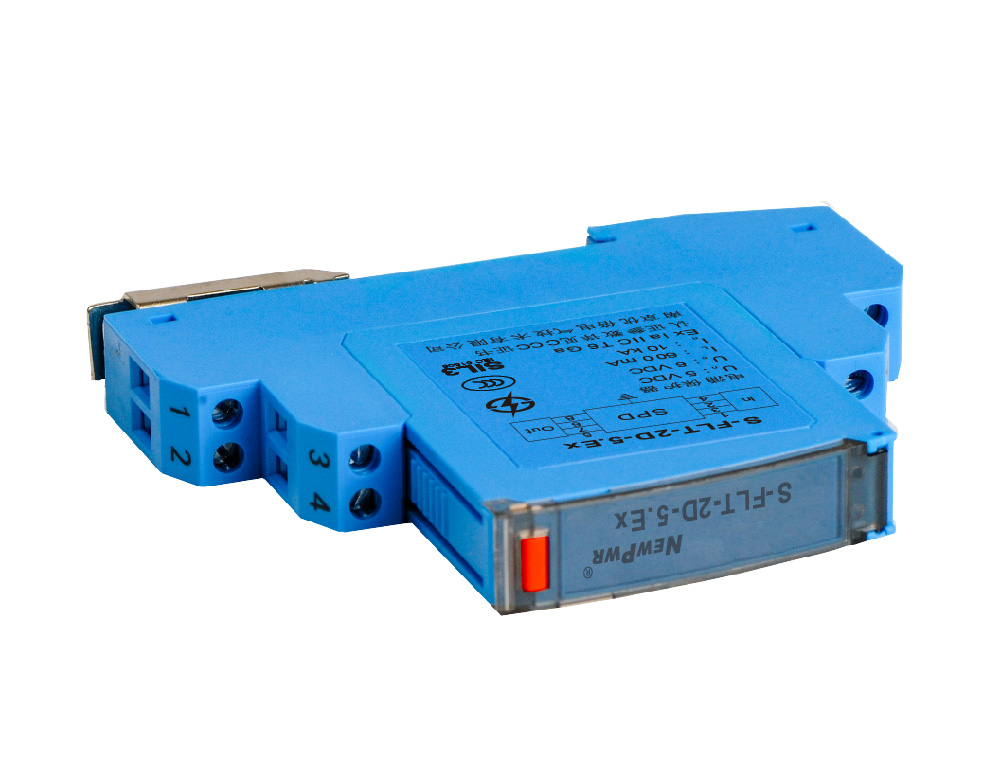

This SPD limits inducedt ransients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2 wire RTD，TC，RS-485，MODBUS，PROFIBUSDP，CAN ect.

Type

Wire system

Ex

Ground protection

Share
S-FLT-2D-5.Ex
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】




  Installation                                                  Disposal



【Technical data】 General parameters Lightning parameters Operating conditions State Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 5 V
Max. continuous operating voltage Uc(DC) 6 V
Max. continuous operating voltage Uc(AC) 4 V
Nominal current IL 600 mA
Series impedance 1 Ω
Response time Ta ＜ 1 ns
Bandwidth fG(100 Ω resistance) 100 MHz
Lightning parameters
Total lightning impulse current Iimp(10/350 μs) ,D1 10 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs) ，C2 L – L ≤ 45 V/ L – PE ≤ 550 V
Voltage protection level Up(1 kV/μs) ，C3 L – L ≤ 15 V/ L – PE ≤ 550 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
State
Flame retardant grade(UL94) V0
Shell material
Material PC
Protection degree IP20
Mechanical specifications
Minimum installation wire cross-sectional area 0.2 mm²
Maximum installation wire cross-sectional area 2.5 mm²
Installtion 35 mm DIN rail
Grounding mode Grounding rail
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CNEX, SIL, CE, FCC, CCC, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 11.1 FIT
λDU (1 FIT=10-9/h) 0.927 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 12.027 FIT
SFF 92.3%
PFDavg(T1=1Y) 4.07E-06
PFH 9.27E-10 1/h
Intrinsically safe circuit certification Ex ia ⅡC T6 Ga
Ui 6 V
Ii 500 mA
Pi 750 mW
Ci 0 μF
Li 0 mH
NPEXA-C11
