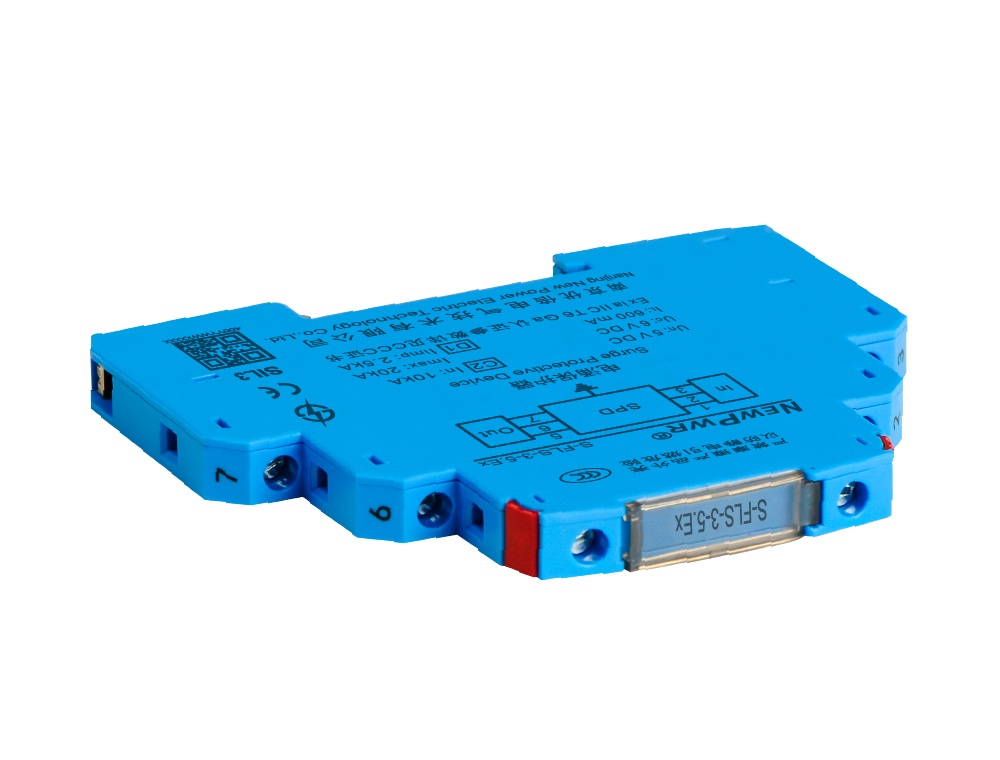

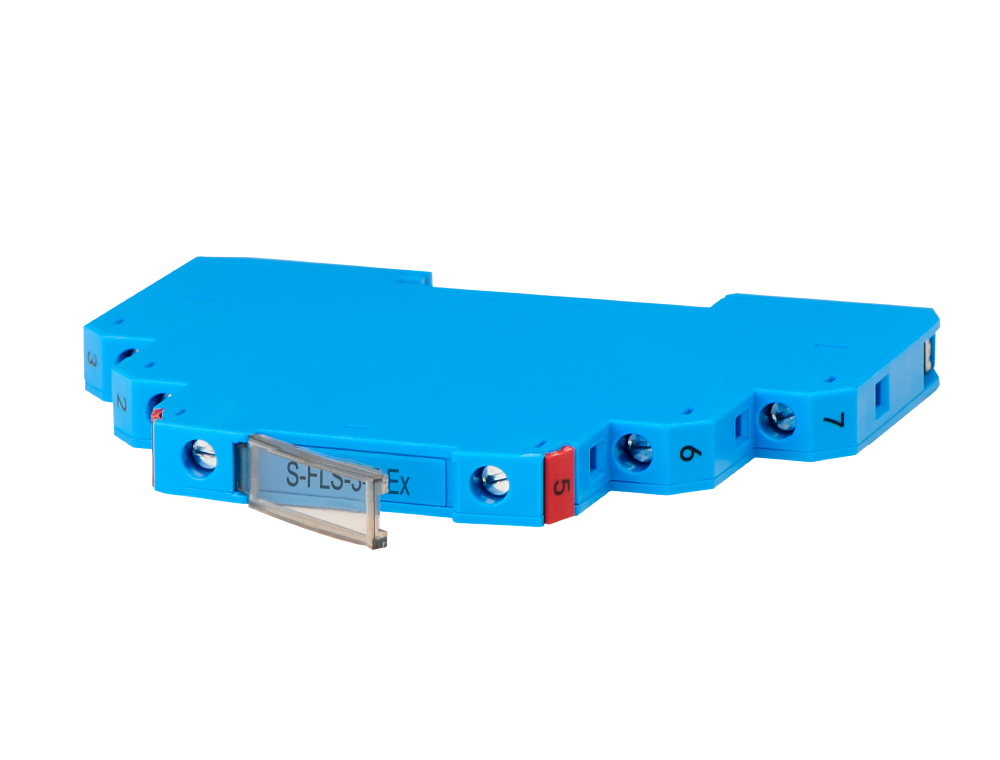

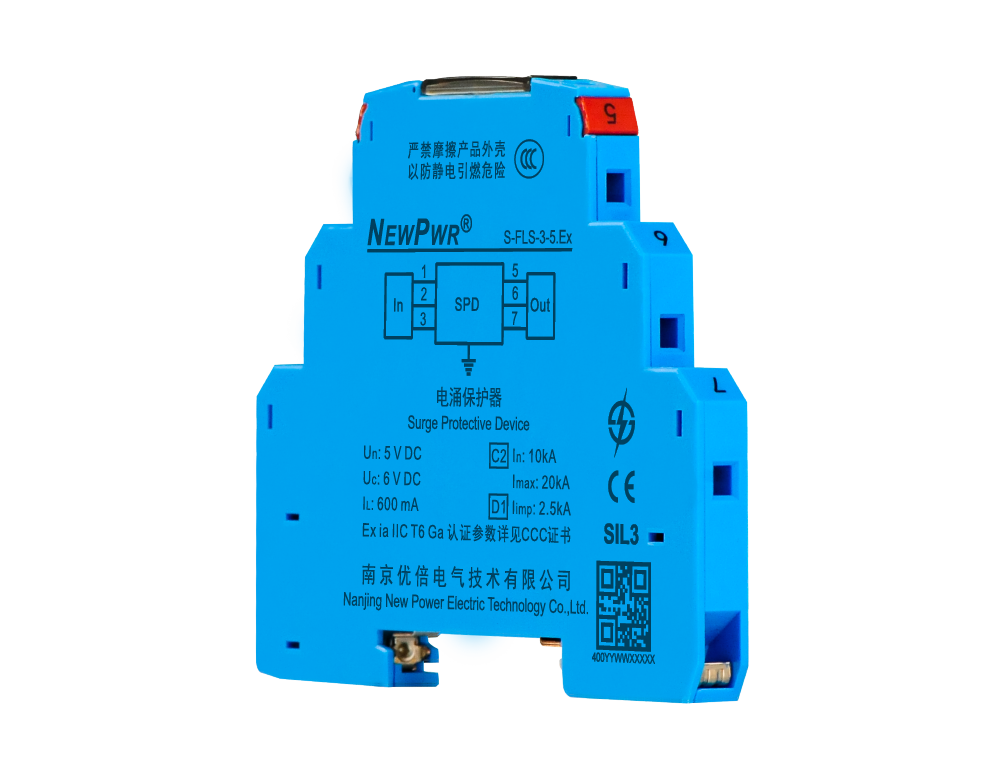

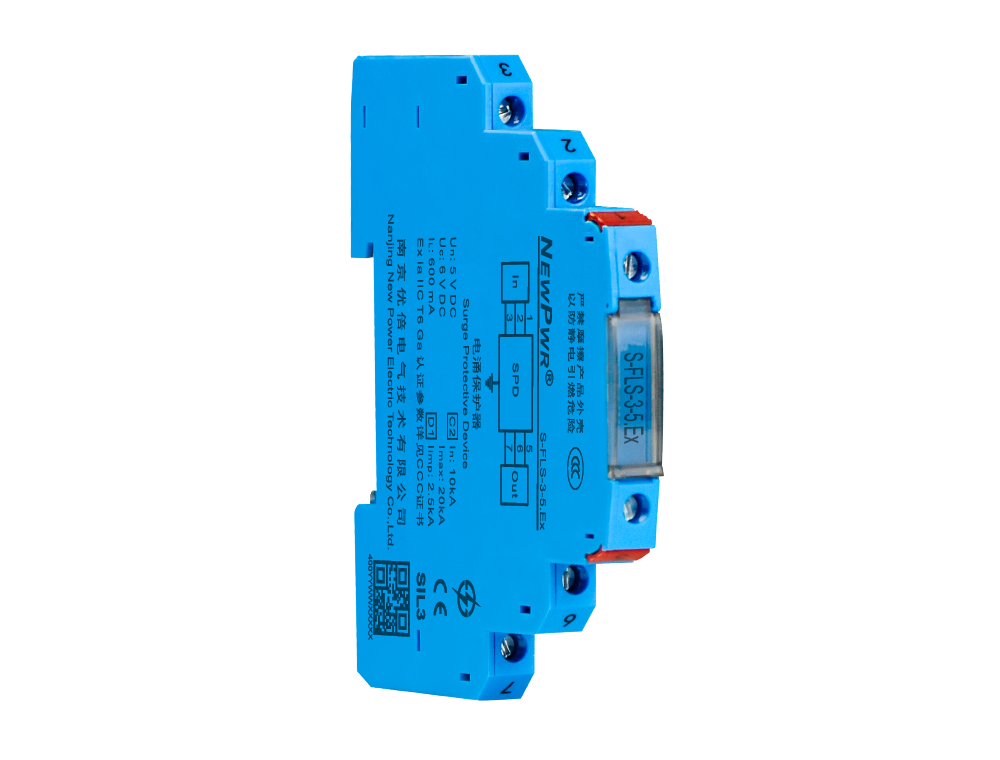

Product SPD S-FLS-3-5.Ex

S-FLS-3-5.Ex

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 3-RTD ect.

Type

Wire system

Ex

Ground protection

Share
S-FLS-3-5.Ex
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal



【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Technical data
Device type Type A
General parameters
Nominal voltage Un 5 V
Max. continuous operating voltage Uc(DC) 6 V
Max. continuous operating voltage Uc(AC) 4 V
Nominal current IL 600 mA
Series impedance 1.8 Ω
Response time Ta ＜ 1 ns
Bandwidth fG(100 Ω resistance) 10 MHz
Lightning parameters
Total lightning impulse current Iimp(10/350 μs) ,D1 7.5 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs) ，C2 L – L ≤ 45 V/ L – PE ≤ 600 V
Voltage protection level Up(1 kV/μs) ，C3 L – L ≤ 15 V/ L – PE ≤ 600 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Material PC
Flame retardant grade (UL94) V0
Protection degree IP20
Mechanical specifications
Connecting wire size 0.2mm² ~ 2.5 mm²
Installtion DIN35 mm导轨安装
Grounding mode Rail/ terminal (optional)
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals CNEX, SIL, CE, FCC, CCC
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 14.1 FIT
λDU (1 FIT=10-9/h) 0.667 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 14.767 FIT
SFF 95.5%
PFDavg(T1=1Y) 2.93E-06
PFH 6.67E-10 1/h
Intrinsically safe circuit certification Ex ia II C T4/T5/T6 Ga
Ui 6 V
Ii 500 mA
Pi 750 mW
Ci 0 μF
Li 0 mH
NPEXA-C11

一入一出

热电偶输入安全栅
