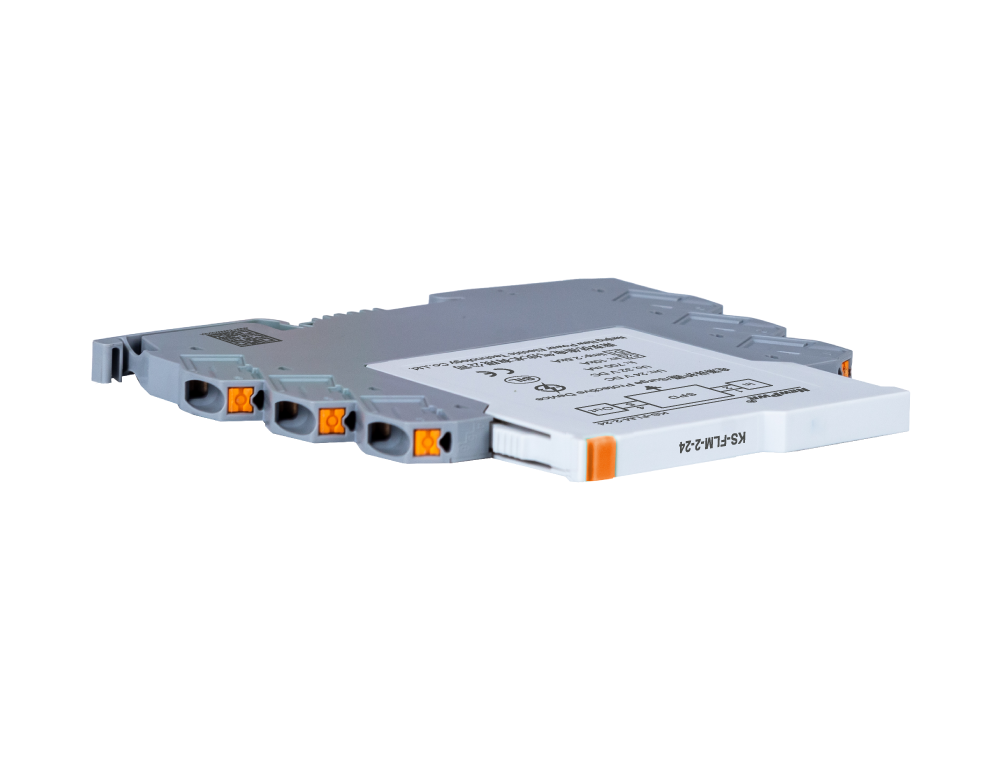

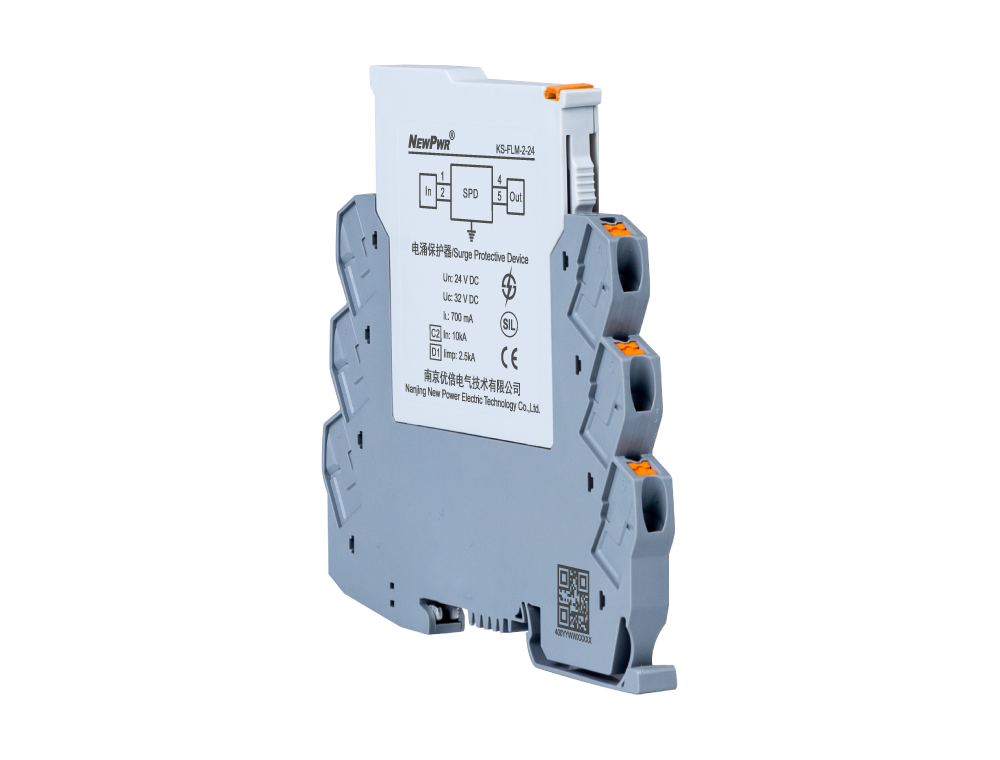

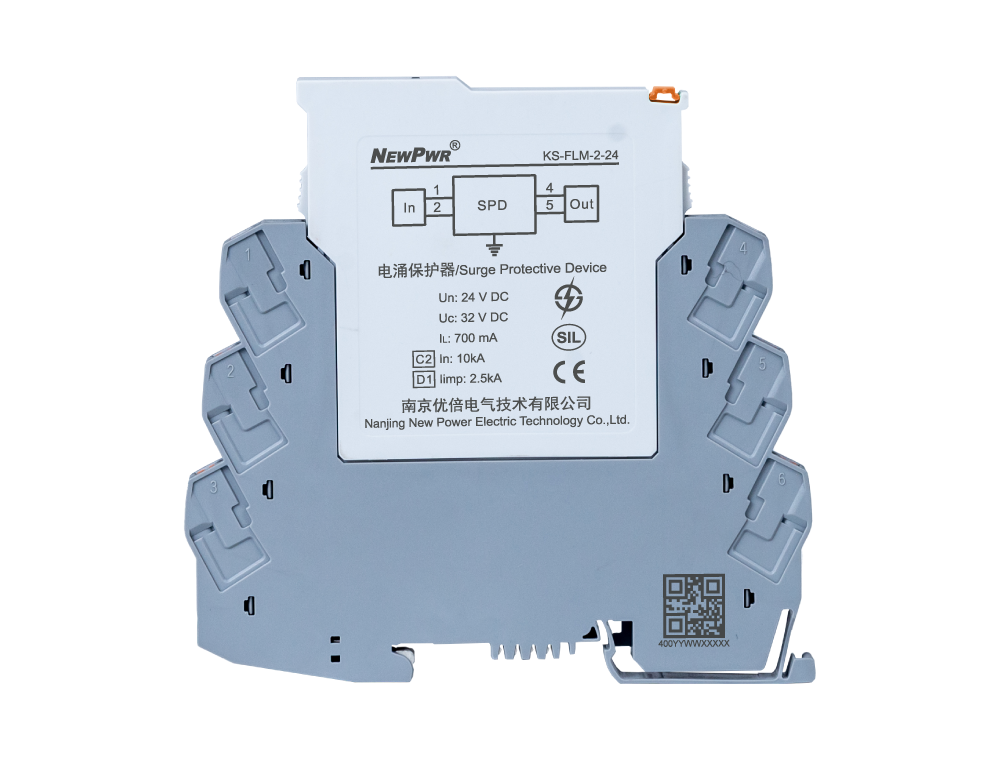

Product SPD KS-FLM-2-24

KS-FLM-2-24

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 2-wire pressure transmitter, valve positioner, electrical converter, flowmeter, solenoid valve and other field instruments ect.

Type

Wire system

Ex

Ground protection

Share
KS-FLM-2-24
Product details Technical data Download
contrast

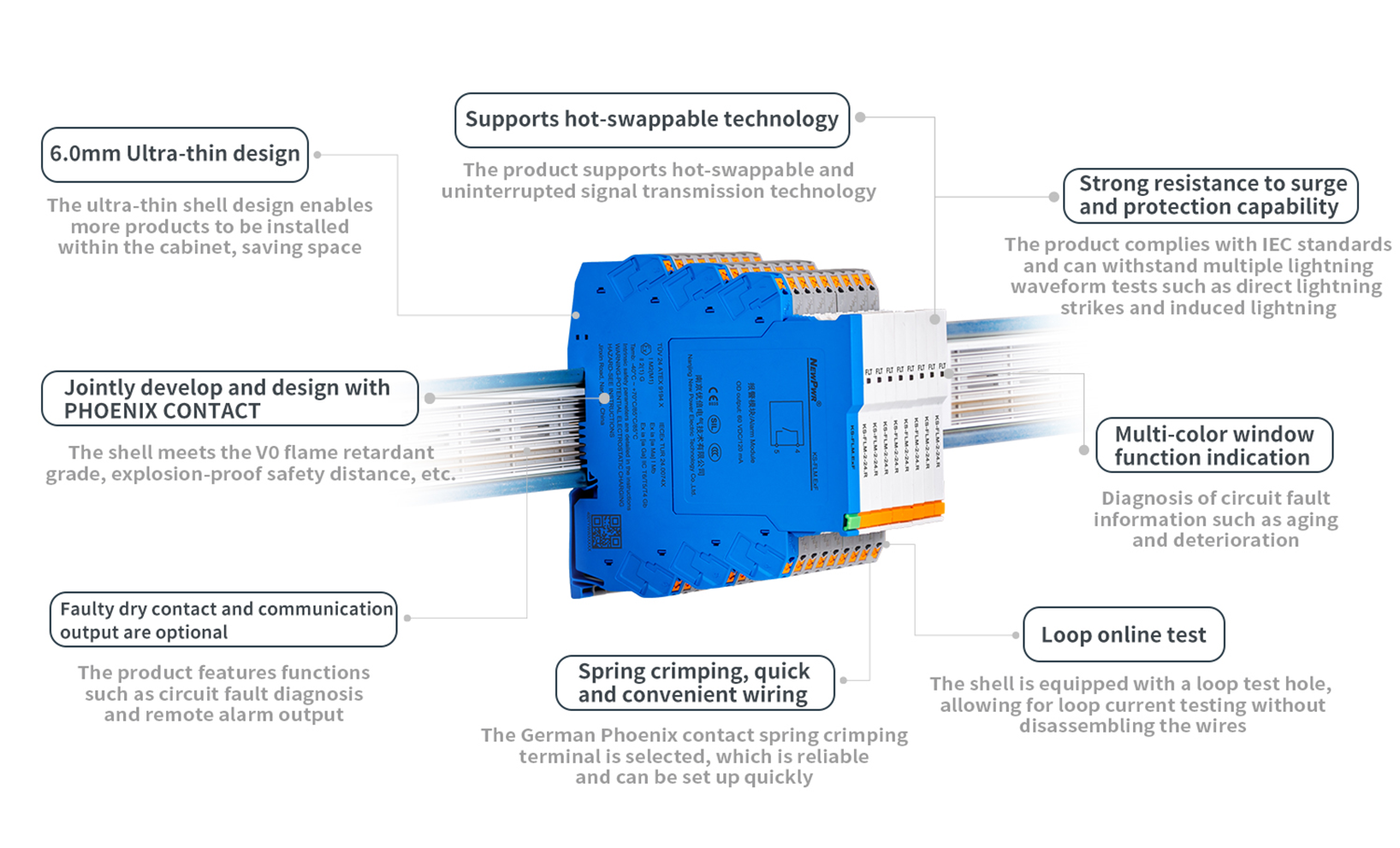

【Core technology】


【Technical data】 General parameters Lightning parameters Operating conditions Shell material 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
General parameters
Nominal voltage Un 24 V
Max. continuous operating voltage Uc(DC) 32 V
Max. continuous operating voltage Uc(AC) 22.5 V
Nominal current IL 700 mA
Series impedance <1Ω
Response time Ta ＜1ns
Bandwidth fG 300 kHz
Lightning parameters
Total lightning impulse current Iimp(10/350 μs) ,D1 5 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs) ，C2 L – L ≤60V/ L – PE ≤500V
Voltage protection level Up(1 kV/μs) ，C3 L – L ≤45 V/ L – PE ≤500V
Operating conditions
Operating temperature -40 ℃ ~ +85 ℃
Shell material
Material PBT
Flame retardant grade(UL94) V0
Protection degree IP20
Mechanical specifications
Cross-sectional area (min.) 0.2 mm²
Cross-sectional area (max.) 2.5 mm²
Installtion 35mm DIN rail
Grounding mode Rail grounding
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals SIL, CE, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 38.3 FIT
λDU (1 FIT=10-9/h) 1.02 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 39.2 FIT
SFF 97.4%
PFDavg(T1=7Y) 3.13E-05
PFH 1.02E-09 1/h
