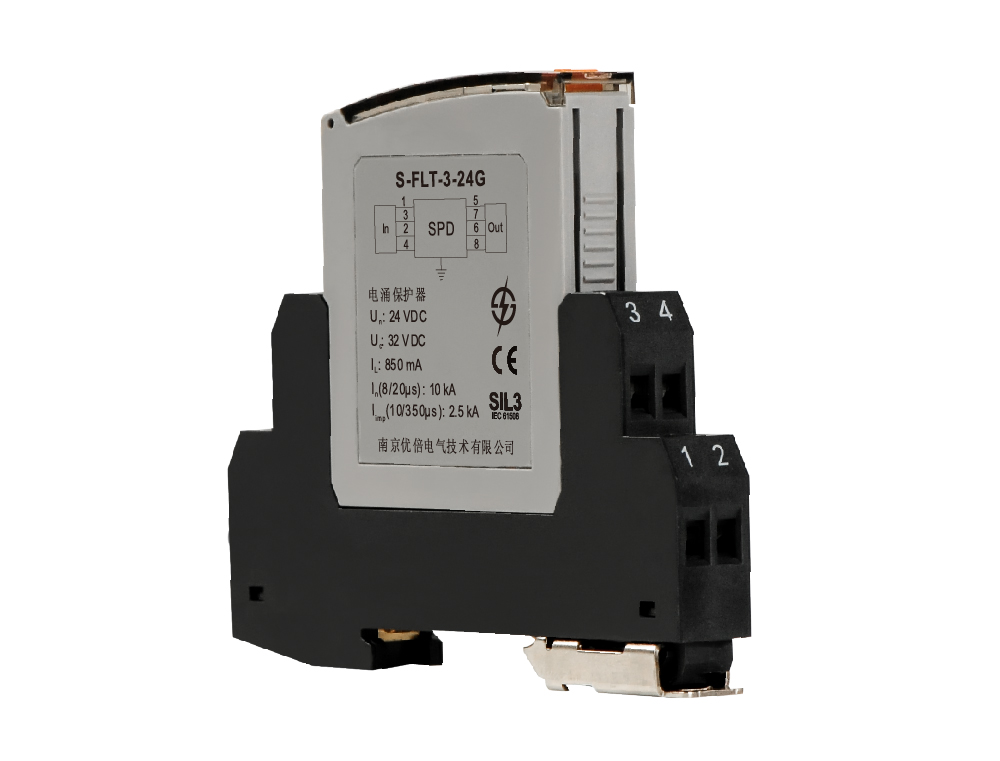

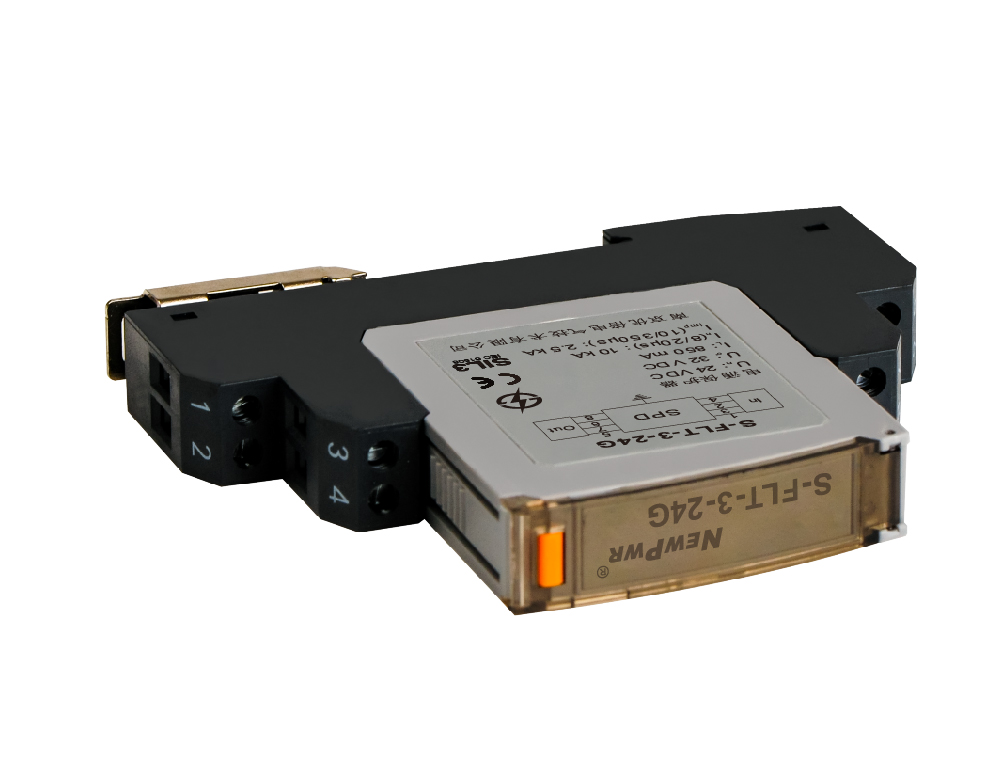

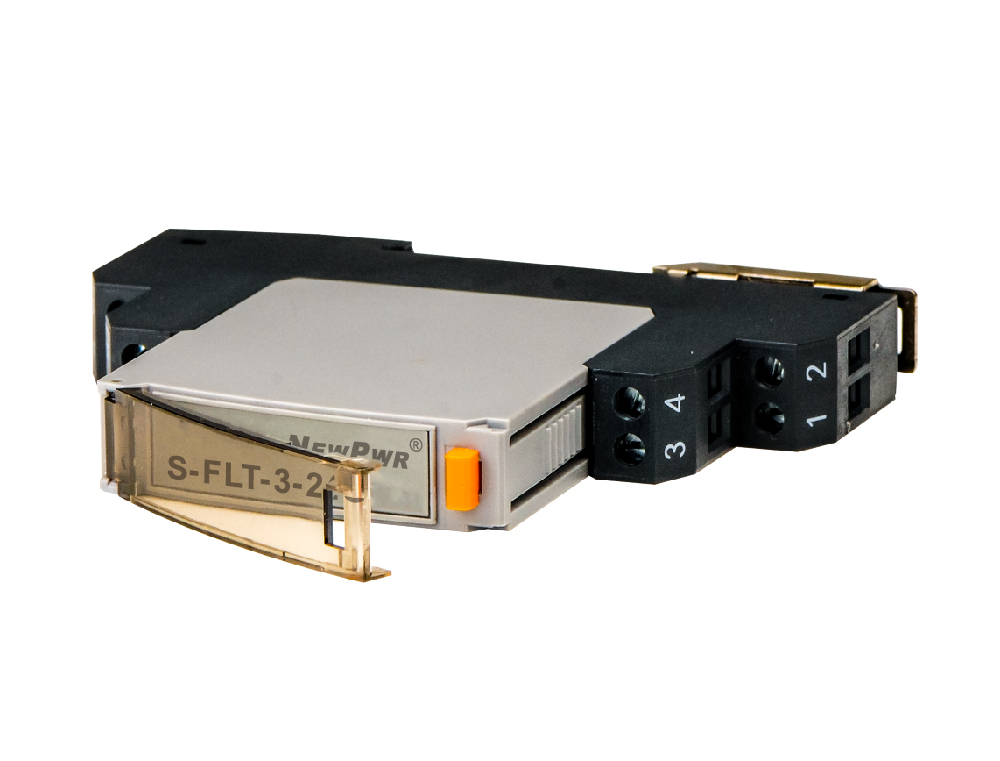

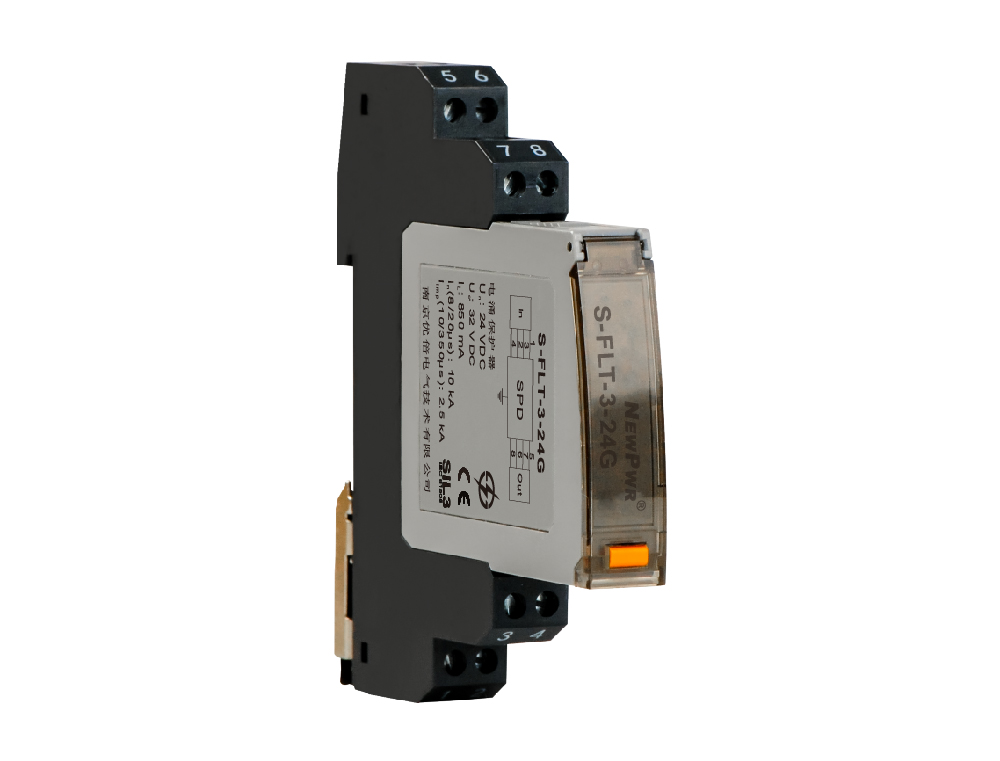

S-FLT-3-24G

This SPD limits induced transients of different origin (lightning stroke, switching impulse, etc.). This is achieved by diverting the transient current to ground and limiting the signal line voltage to a safe level for the duration of the surge. It can be applied to 3 or 4 transmitter, RS-232 ect.

Type

Wire system

Ex

Ground protection

Share
S-FLT-3-24G

【Core technology】


【Installation and disposal】




  Installation                                                  Disposal



General parameters
Nominal voltage Un 24 V
Max. continuous operating voltage Uc(DC) 32 V
Max. continuous operating voltage Uc(AC) 22.5 V
Nominal current IL 850 mA
Series impedance 1 Ω
Response time Ta < 1 ns
Bandwidth fG(100 Ω resistance) 7 MHz
Maximum installation wire cross-sectional area 2.5 mm²
Lightning parameters
Total lightning impulse current Iimp(10/350 μs) ,D1 10 kA
Lightning impulse current Iimp(10/350 μs) ,D1 2.5 kA
Max. discharge current Imax(8/20 μs) ,C2 20 kA
Nominal discharge current In(8/20 μs) ,C2 10 kA
Voltage protection level Up(8/20 μs) ,C2 L – L ≤ 60 V/ L – PE ≤ 60 V
Voltage protection level Up(1 kV/μs) ,C3 L – L ≤ 45 V/ L – PE ≤ 45 V
Operating conditions
Operating temperature -40 ℃ ~ +80 ℃
Shell material
Material PC
Flame retardant grade(UL94) V0
Protection degree IP20
Mechanical specifications
Minimum installation wire cross-sectional area 0.2 mm²
Installtion 35 mm DIN rail
Grounding mode Grounding rail
Certified data
Standards IEC 61643-21/GB/T 18802.21
Product approvals SIL, CE, FCC, Lightning protection
Device type Type A
HFT 0
Operating mode Low/High
SIL SIL3
λS (1 FIT=10-9/h) 18.8 FIT
λDU (1 FIT=10-9/h) 0.06 FIT
λDD (1 FIT=10-9/h) 0 FIT
λTOTAL (1 FIT=10-9/h) 18.86 FIT
SFF 99.7%
PFDavg(T1=1Y) 2.63E-07
PFH 6.00E-11 1/h
