NPEXA-CM311

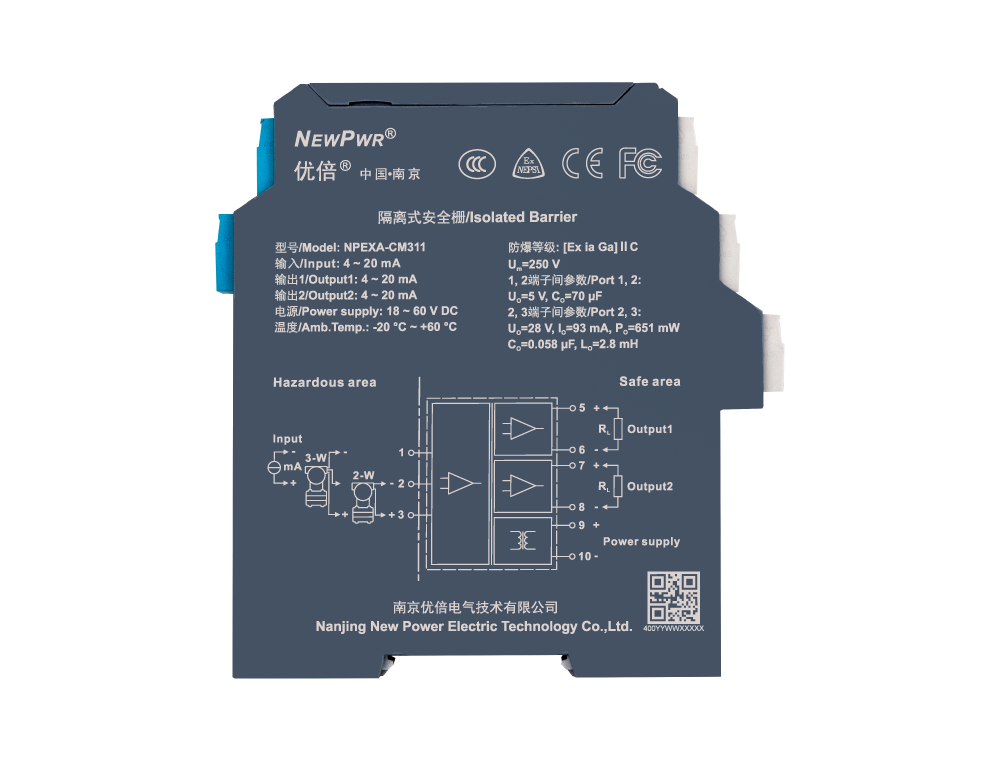

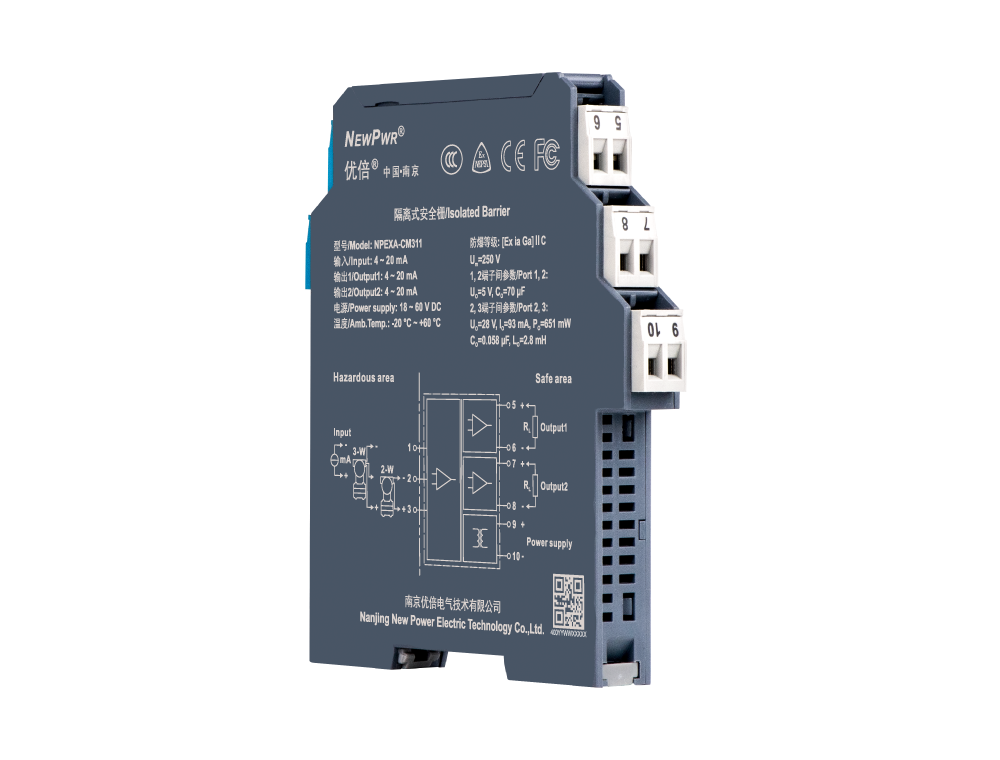

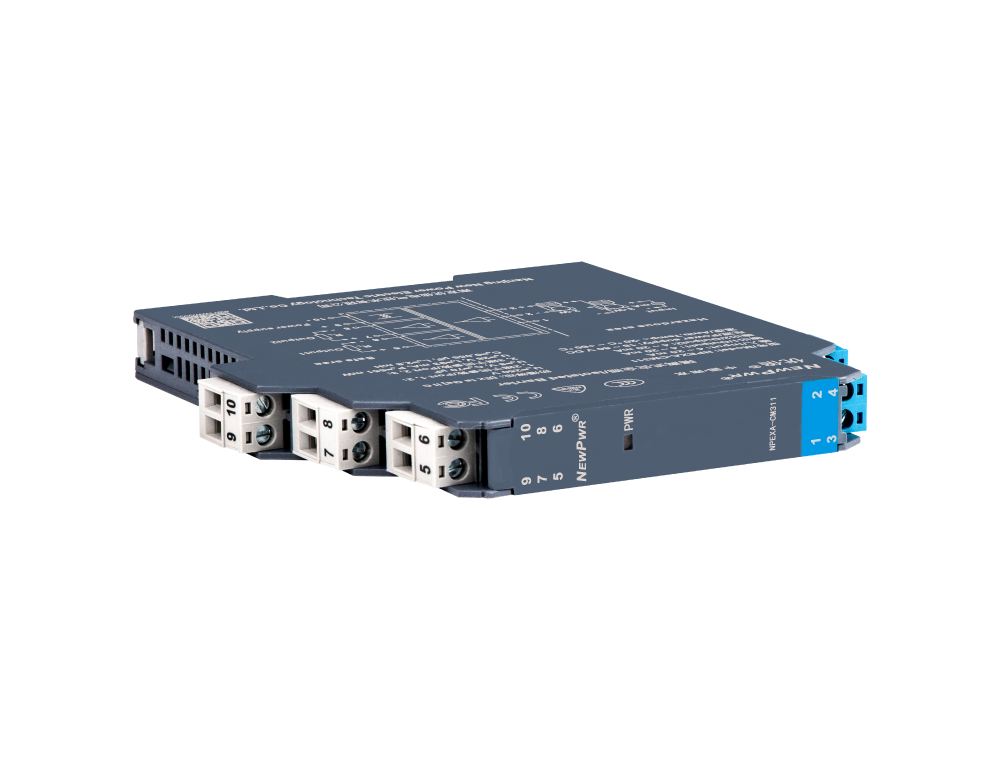

Analog input isolated barrier, it provides transmitters with power in the hazardous area and transfers 4~20mA signals from a hazardous area to a safe area. It allows transmission of HART communication signals. The input, output, and power supply are galvanically isolated from each other.

Input signal

Output signal

Channels

Power Supply Mode

HART

Share
NPEXA-CM311

【Core technology】


【Installation and disposal】






Installation                                               Disposal






Supply
Power supply 18 ~ 60 V DC
Input
Input signal 4 ~ 20mA, HART
Line resistance approx. 75Ω
Available voltage open-circuit voltage ≤ 26V; voltage: ≥ 16V at 20mA
Output
Output signal 4 ~ 20mA, HART
Load resistance RL ≤ 550 Ω
Transfer characterisics
Accuracy 0.1 %F.S.
Temperature drift 30 ppm/℃
General parameters
Response time ≤ 2 ms
Power dissipation 1.8 W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 3000V AC (intrinsically safe side / non-intrinsically safe side); ≥ 1500V AC (Power supply /non-intrinsically safe side)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Suitable location Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6
State
Safe state The output signal is less than 3.6mA or greater than 21.5mA
Mechanical specifications
Connection method Screw connection
Dimension 12.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals NEPSI, SIL, CE, FCC, CCS, CCC
Type of equipment Type A
Hardware fault margin(HFT) 0
Mode of demand low/high
Safety integrity level(SIL) SIL3
λS (1 FIT=10-9/h) 236.3 FIT
λDU (1 FIT=10-9/h) 11.2 FIT
λDD (1 FIT=10-9/h) 145.68 FIT
λTOTAL (1 FIT=10-9/h) 393.18 FIT
SFF 97.2%
PFDavg(T1=1Y) 4.91E-05
PFH 11.2E-09 1/h
Ex marking [Ex ia Ga]ⅡC
Um 250 V
Uo 5 V (Terminals 1, 2); 28V (Terminals 2, 3)
Io 93 mA (Terminals 2, 3)
Po 651 mW (Terminals 2, 3)
Co 70 μF (Terminals 1, 2); 0.058 μF (Terminals 2, 3)
Lo 2.8 mH (Terminals 2, 3)
