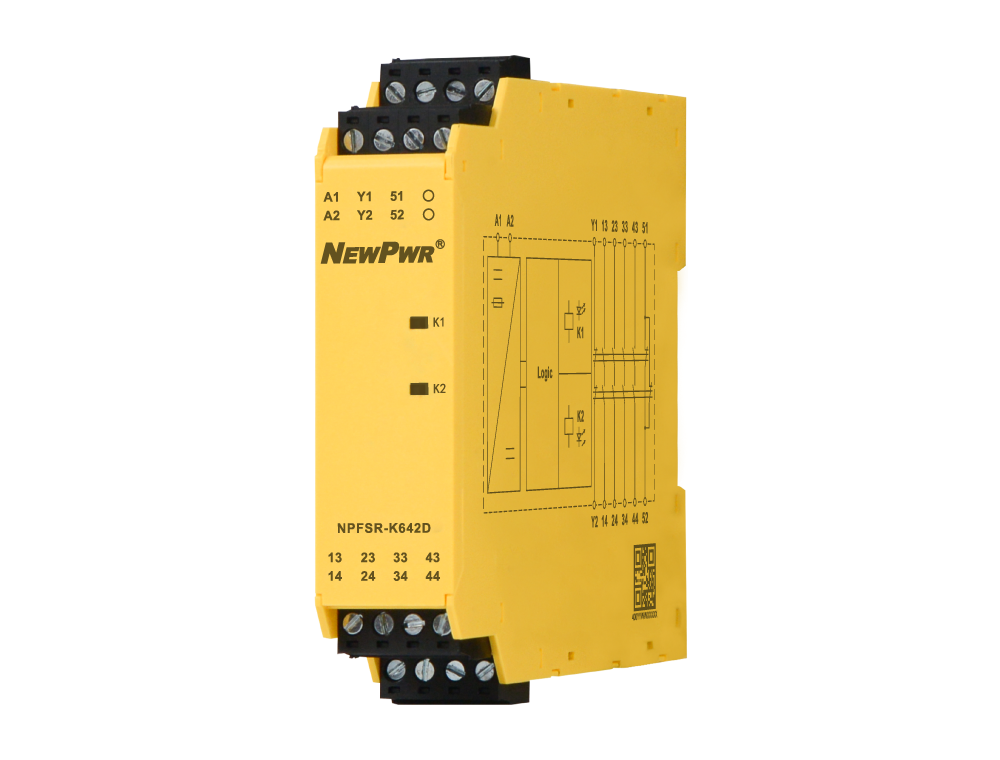

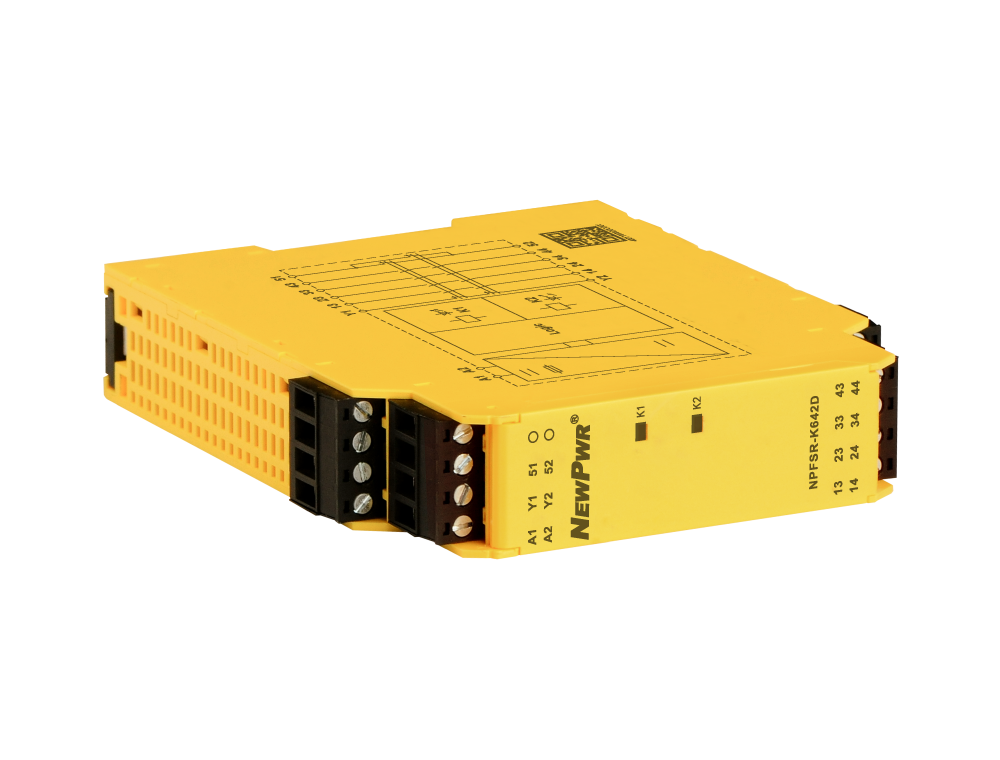

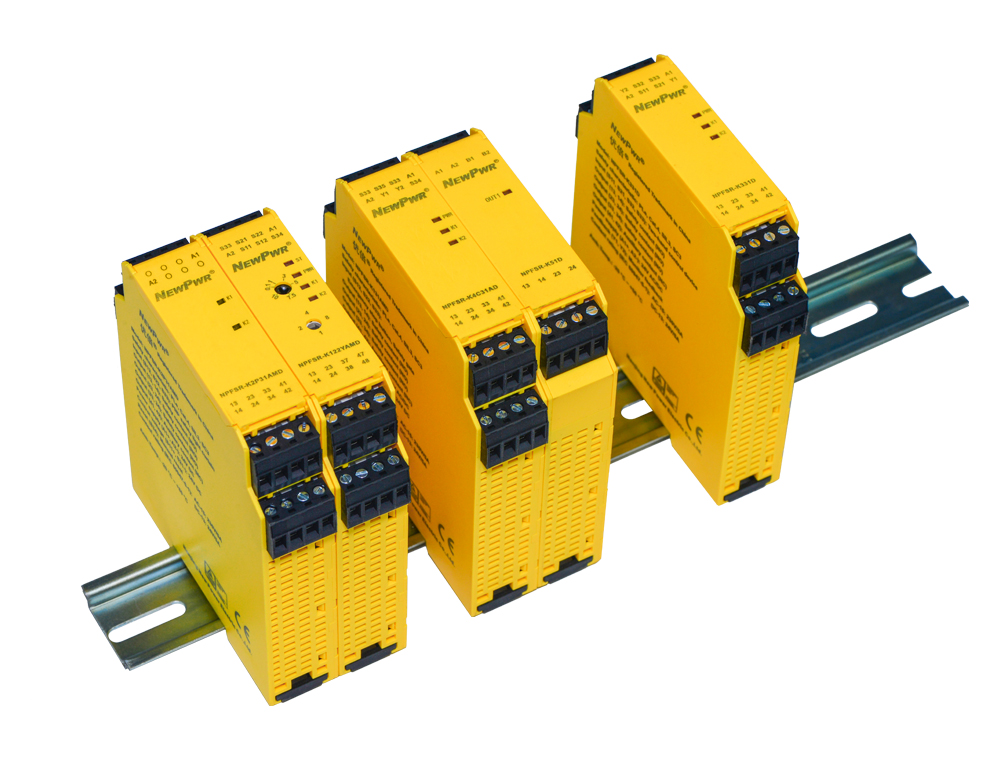

Product Safety Relay NPFSR-K642D

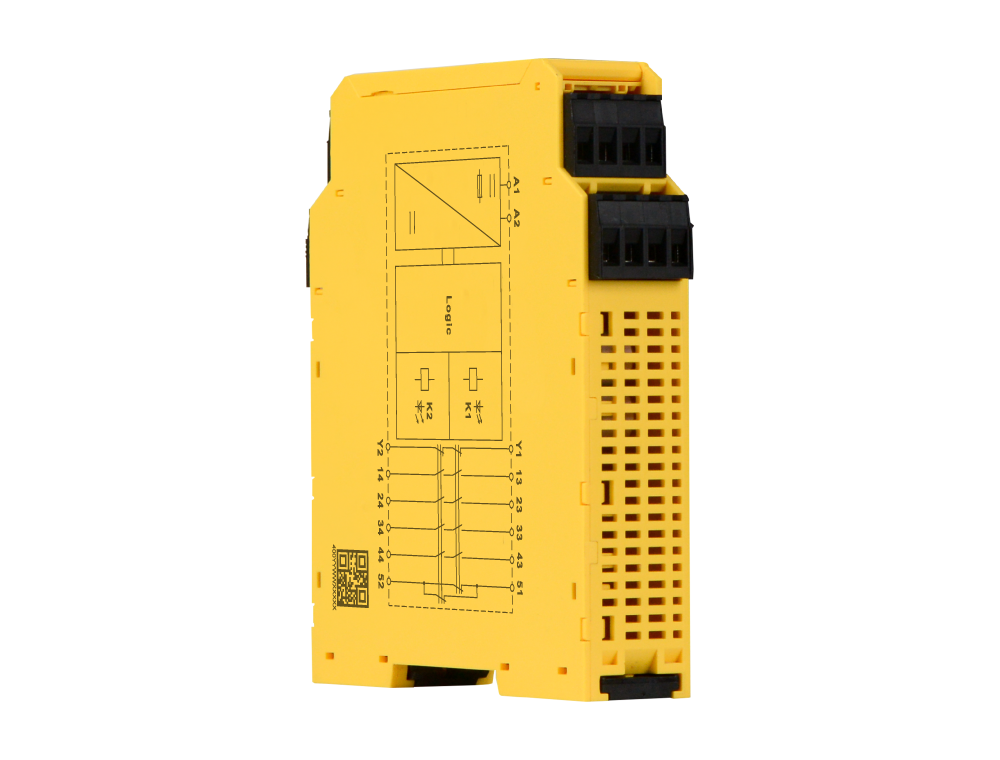

NPFSR-K642D

The K series contact expansion can expand a group of safety contact signal into multiple safety contact signals, and widely used in machining and other industries. Main features: Single channel; With feedback loop; The safety function remains effective in the case of a component failure.

Input devices

Signal type

Voltage range

Reset method

Share
NPFSR-K642D
Product details Technical data Download
contrast

【Core technology】


【Installation and disposal】






Installation                                               Disposal


【Technical data】 Supply Input Output General parameters EMC data Operating conditions 【Mechanical specifications】 Mechanical specifications 【Certified data】 Certified data
Supply
Voltage range 24V DC
Voltage tolerance 0.85 ~ 1.1
Input
Current consumption ≤ 80mA/24V DC
Cable resistance ≤ 15Ω
Test pulse width ≤ 4ms
Input devices Safety contact
Output
Signal type 4NO+2NC
Contact type Forced guided
Contact material AgSnO2+0.2μmAu
Contact loading AC-15: 5A/230V, DC-13: 5A/24V
Contact fuse protection 10A gL/gG(NO), 6A gL/gG(NC)
General parameters
Switch-on ≤ 30ms
Release ≤ 20ms
Recovery time ≤ 100ms
Power dissipation ≤ 2W/24V DC
EMC data
EMC According to IEC/EN 60947, IEC 61326-3-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Rated insulation voltage 250V AC
Rated impulse voltage 6000V(1.2/50us)
Dielectric strength 1500V AC, 1 min
Clearance and creepage According to IEC 60947-1
Operating conditions
Vibration 10Hz ~ 55Hz, 0.35mm
Overvoltage category III
Pollution degree 2
Protection type IP20
Ambient temperature -20°C ~ +60°C
Storage temperature -40°C ~ +80°C
Mechanical specifications
Connection method Screw connection
Dimension 23 mm(W)×100 mm(H)×115 mm(D)
Mounting type DIN35mm
Certified data
Product approvals SIL, CE
Performance level PLe, according to ISO 13849
Category Cat.4, according to ISO 13849
PTI (TM) 20 years, according to ISO 13849
DCavg 99%, according to ISO 13849
MTTFD 164 years, according to ISO 13849
CCF 68, according to ISO 13849
SIL SIL3, according to IEC 61508
SIL CL SIL CL3, according to IEC 62061
HFT 1, according to IEC 62061
SFF ≥ 99%, according to IEC 62061
PFDavg/PTI = 20 years 2.03E-6, according to IEC 62061
PFH 2.31E-9 1/h, according to IEC 62061
Stop Category 0, according to IEC 60204
